Dual precision grounded and hard chromed press platens with electric heating of the upper two platens and water cooling on the lower platens through machined zigzag water channels. The platen sizes are 200 x 200 mm for the LP20-B press and 300 x 300 mm for LP30-B.
Product Category: Hydraulic Presses
-
Hydraulic Press 20
Modern designed steel cabinet with curved sliding front door and control cabinet. The front door is equipped with a large Plexiglas window and the control cabinet is recessed so that it is covered by the front door when opened. The sub cabinet is built up from heavy-duty welded rectangular steel tubing and the top cabinet with aluminum profiles. A thick steel sheet table, which covers the entire sub cabinet, is supporting the four hardened and precision ground pillars as well as the hydraulic press piston. The base platens to the press platens are guided on the pillars with self-lubricating bronze bearings. The whole press platen assembly is totally enclosed with panels surrounding all sides as well as the top which gives total safety to the operator. Dual precision grounded and hard chromed press platens with electric heating of the upper two platens and cooling on the lower platens through machined zigzag water channels. The heating platens are built up with a sandwich construction
-
Hydraulic Press 50
Modern designed steel cabinet with curved sliding front door and control cabinet. The front door is equipped with a large blue tinted Plexiglas window and the control cabinet is recessed so that it is covered by the front door when opened. The sub cabinet has a heavy-duty framework made from welded steel and the top cabinet is built up with rigid aluminum profiles. A solid steel table, covering the entire sub cabinet, is machined from thick sheet and is supporting the four hardened and precision ground pillars as well as the hydraulic press piston. The base platens to the press platens are guided on the pillars with self-lubricating heavy duty bronze bearings. This ensures a very precise guidance of the press platens with perfect parallelism. The whole press platen assembly is totally enclosed with panels surrounding all sides as well as the top which gives total safety to the operator.
The New standard ASTM press is also equipped with newly designed press platen which each has a dual channel cooling system and it also has a new design of the heating system with a larger number of high wattage heating cartridges, placed in a special pattern which, together with the new cooling channel system, enables an extremely precise temperature control and ramping of the platens.
-

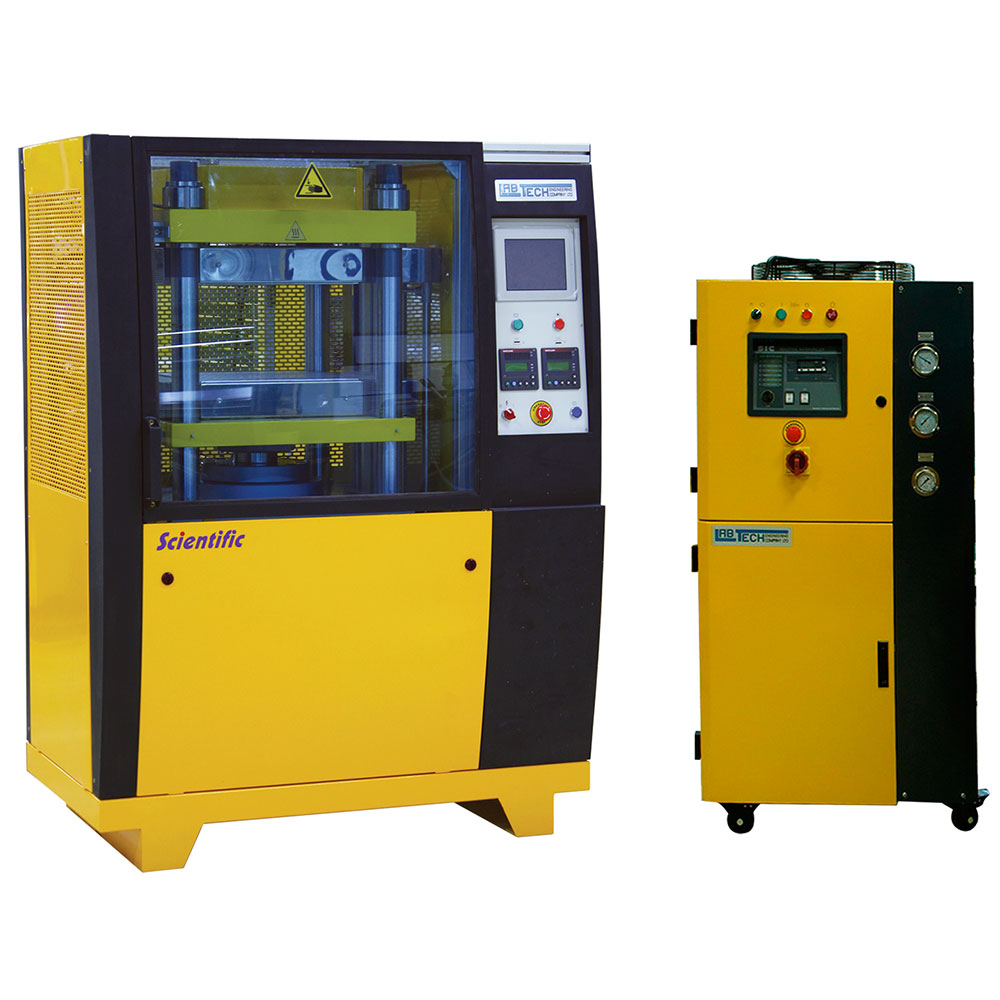

Hydraulic Press with ASTM Cooling
The New standard ASTM press is equipped with newly designed press platen which each has a dual channel cooling system. The press also has a new design of the heating system with a larger number of high wattage heating cartridges, placed in a special pattern which, together with the new cooling channel system, enables an extremely precise temperature control and ramping of the platens.
-

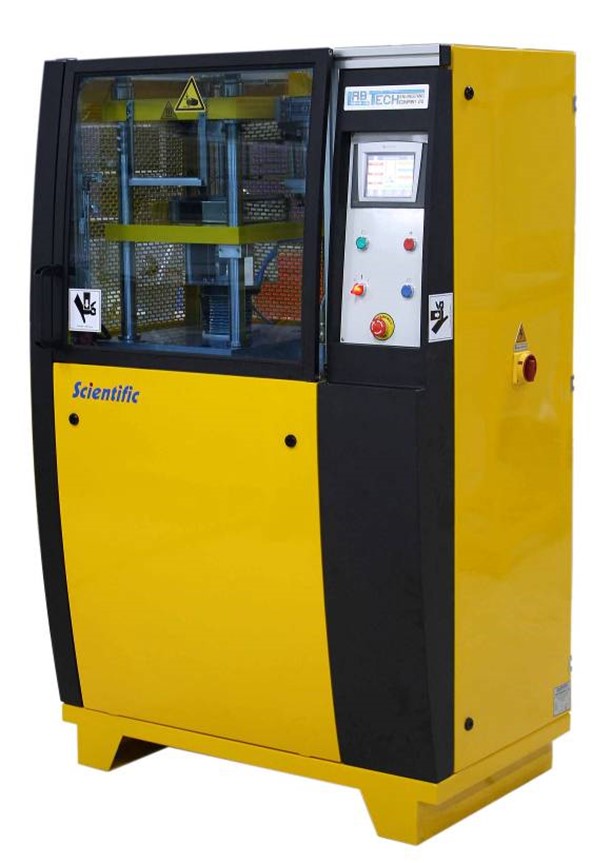

The world’s first Fully Electric & Fully Automatic Scientific Laboratory Press Type LPE-S-20/COMP
This unique laboratory press has no hydraulics and the up stroke pressure is achieved by a ball screw which is driven by an AC gear motor.
The press was developed by our engineers for more than a year and it is the first fully electric version in the world which features electric driven insert platens as well as computerized touch screen control with easy to understand graphics.
The sub cabinet is built up from heavy-duty welded rectangular steel tubing and the top cabinet with aluminum profiles. The front door is made with a large Plexiglas window for full view of the entire press platens. The door slides sideways and will cover the control panel when opened which fully prevents accidental touching of the controls. In addition the door is equipped with dual key type safety locks. The side, rear and top parts surrounding the platens are made with perforated steel sheets so the whole press platen set up is fully protected from any kind of accidents.
