The MicroScientific Bench Top Two roll mill type LRM-M-100 is intended mainly for learning institutes and for laboratories where a smaller batch size is preferred compared to our range of floor mills. It is supplied as standard with variable speed roll drive as well as electric roll heating system. The mill features available upon quote request.
Product Category: Two Roll Mills
-

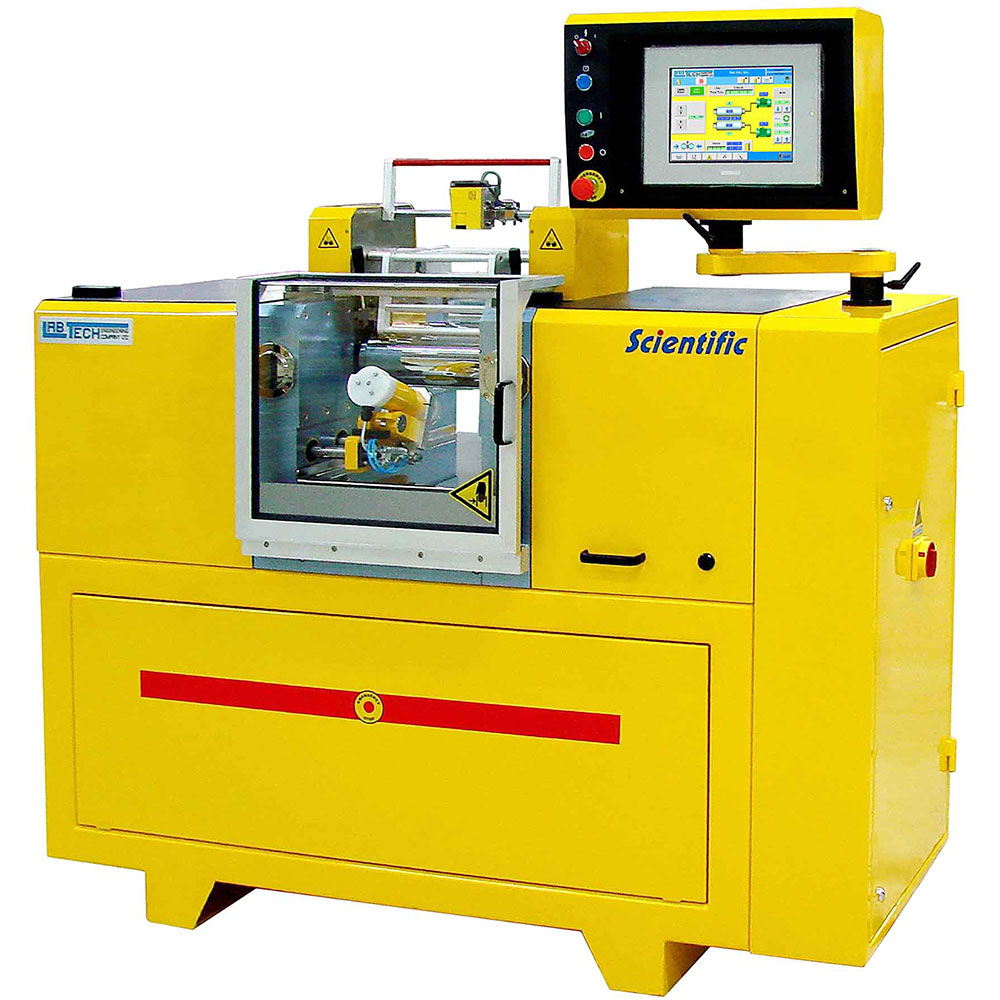

Two Roll Mill 110 Computer Version
Hands Free Fully Automatic Computerized Two-Roll Mills with Rollover device. Enables complete standardizations of quality controls, colour matching and additive evaluations as well as control of incoming pigment or other raw materials. The computerized Scientific two-roll mills are equipped with a Rollover device which enables fully automatic “hands free” mixing of the mill batch, where all the mill parameters can be pre-programmed on the colour touch screen so that the mill will run exactly under the same condition from one batch to another, be it a new batch just after the first batch or a batch produced months or years thereafter. This enables complete standardizations of Quality Control, Colour Matching, and Research etc of pigments, additives, fillers and other components added to thermoplastics. In house designed software with a user-friendly programming system. The Main Screen shows clearly all mill parameters in running mode so that only a glance is needed to identify the status of the mill. All programs can be set up extremely fast and easy by simply touching respective window, key in the required parameters on the keyboard shown on the screen, press enter and go to next parameter or save and exit programming mode. The programming can even be done while the mill is running.
-

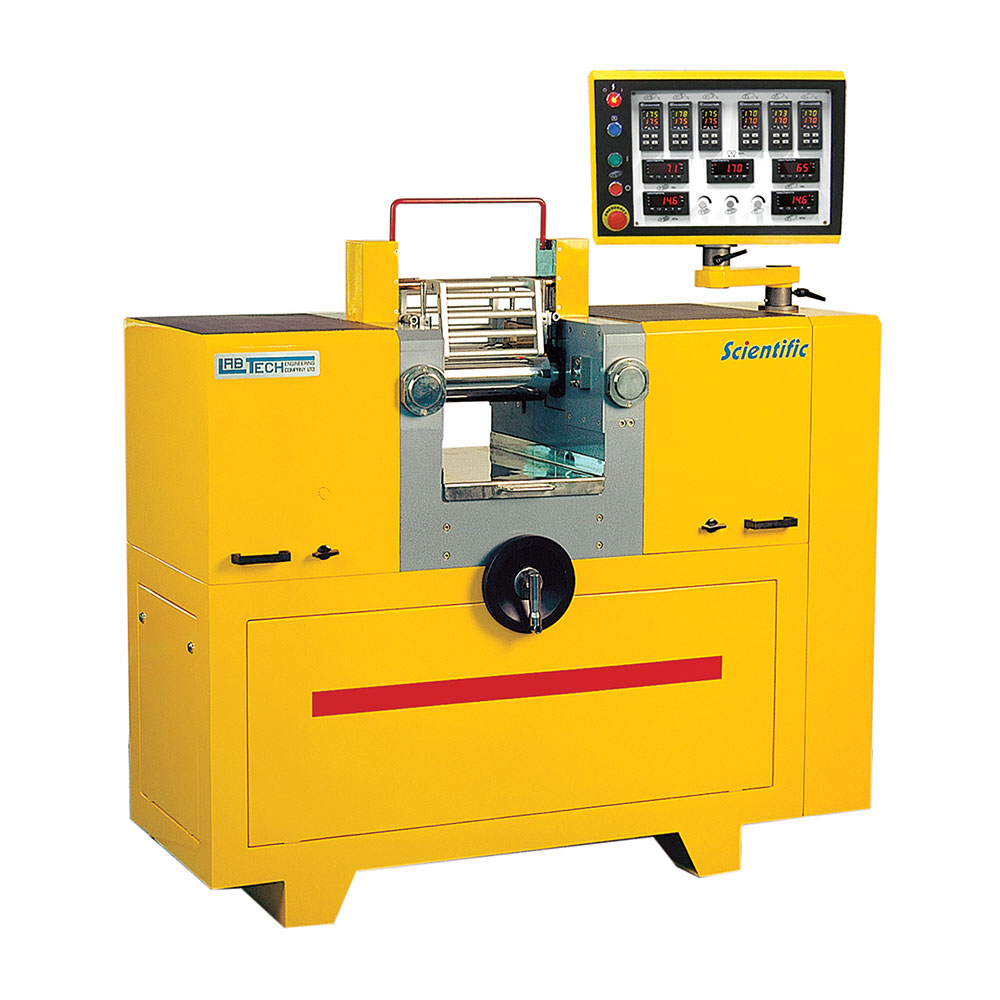

Two Roll Mill 110 Manual Version
(Now with individual infinite variable speed drive of each roll as standard) Modern designed steel cabinet built up with welded rectangular steel tubes. Swing away control panel mounted on a tubular steel arm. Heavy duty machined U-shaped frame for the roll assembly. The rolls are machined from high-grade tool steel, which has been treated to a hardness of over 60 Rockwell C, and hard chromed, precision ground as well as polished to a mirror surface. The rolls are mounted with dual heavy-duty needle bearings on each shaft and resting in machined bearing blocks. The grease lubricated bearing assemblies are built with special heat resistant seals on the roll sides to prevent leakage and to ensure a long bearing life at high temperatures.
