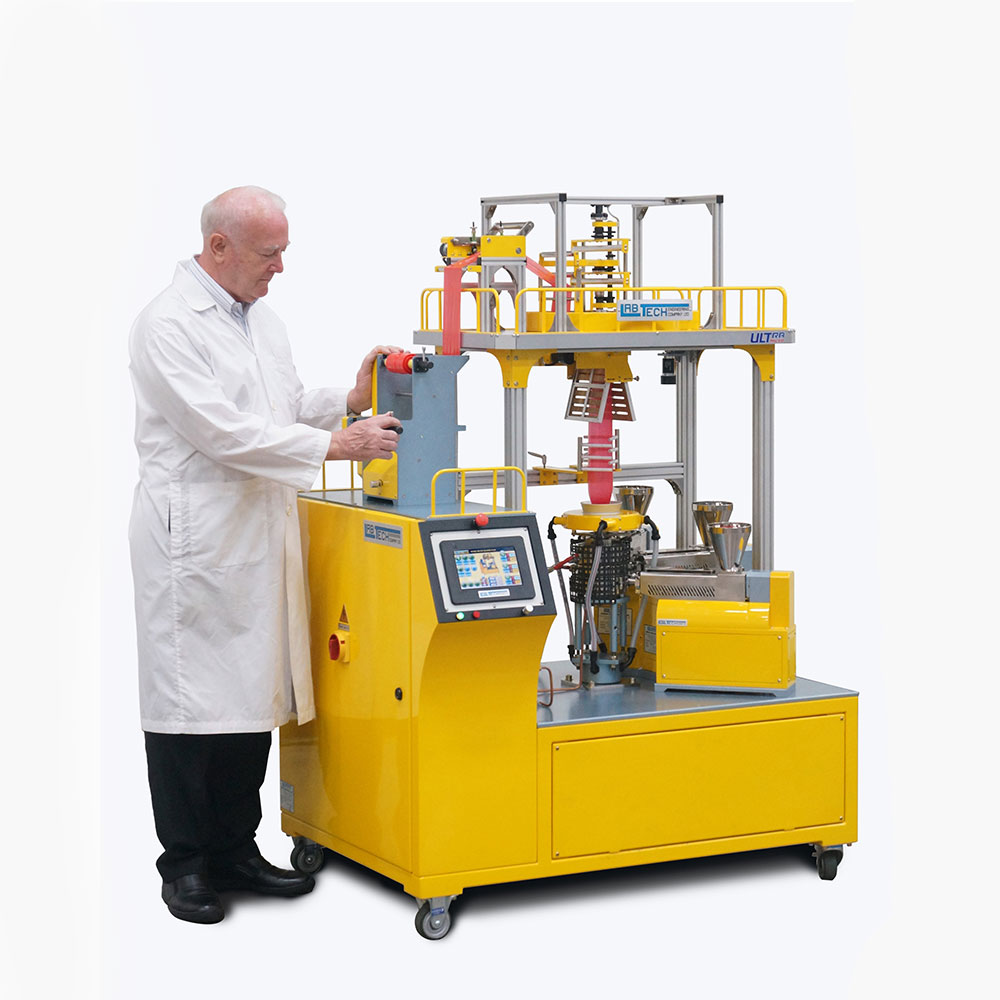

World’s smallest Ultra Micro co-extrusion blown film line. A lot of engineering has gone into this machine, completely designed and built from scratch and the result is truly amazing. This Ultra Micro co-ex film blowing line was again built by Labtech’s engineers and technicians during spare time and presented as gift to our manager. However it worked so well that we decided to offer it to our customer worldwide. It was shown for the first time in March 2015 at the NPE exhibition in USA and it drew a huge crowd at all times during show hours. This line is a fully functional replica of our larger co-ex film blowing lines.
Product Category: Ultra Micro Scientific Laboratory Equipment
-
Co-Extrusion Ultra Micro Cast Film 3 Layer: Co-Ex LUMCR-50
For producing films down to 10 µm and thin sheets up to 300 µm. Comprehensively tested with LLDPE, LD & HDPE and PP. More resin types are being tested.
As with all our other Ultra Micro lines, this Co-Ex version was designed and built by our engineers on their spare time and given as a gift to our manager. The line features two units of our conical extruder which have the unique features to be able to use regular plastic pellet sizes. This is made possible by having an in feed section diameter of 18 mm which then gradually reduces to 8 mm at the screw tip. All three rolls of the chill roll stack have a diameter of 40 mm and are same as our larger versions equipped for water cooling and heating. The line includes a roll tempering unit with circulating water, connected to all three rolls giving a temperature regulation from ambient temperature to a maximum of around 90° C. The roll width for the LUMCR-50 is 100 mm and can produce films or sheets with a width after neck-in of around 40 to 45 mm with the standard 50 mm die and 60 to 65 mm with the optional 75 mm die. The thickness range is around 10 to 300 microns. The rolls are made of stainless steel of same high quality as we use for our larger versions and are precision ground and polished to a mirror surface.
-
Ultra Micro “Combi” Cast Film and Sheet line and Blown Film
We are pleased to present a unique combination unit of our Ultra Micro Cast film & sheet line type LUMCR-50 and Ultra Micro Blown film line type LUMF-150 supplied on same table top display and using same Ultra Micro Single screw extruder type LE8-30/C, as first presented at the K-show in Dusseldorf 2013. Both our Ultra Micro lines were secretly designed and built by our engineers and technicians during their spare time and were presented as a New Years gift to our company’s manager. A lot of engineering has gone into these machines which are completely designed and built from scratch and the result is truly amazing. In fact the Ultra Micro lines worked so well that we decided to also start offering them to our customer worldwide.
-

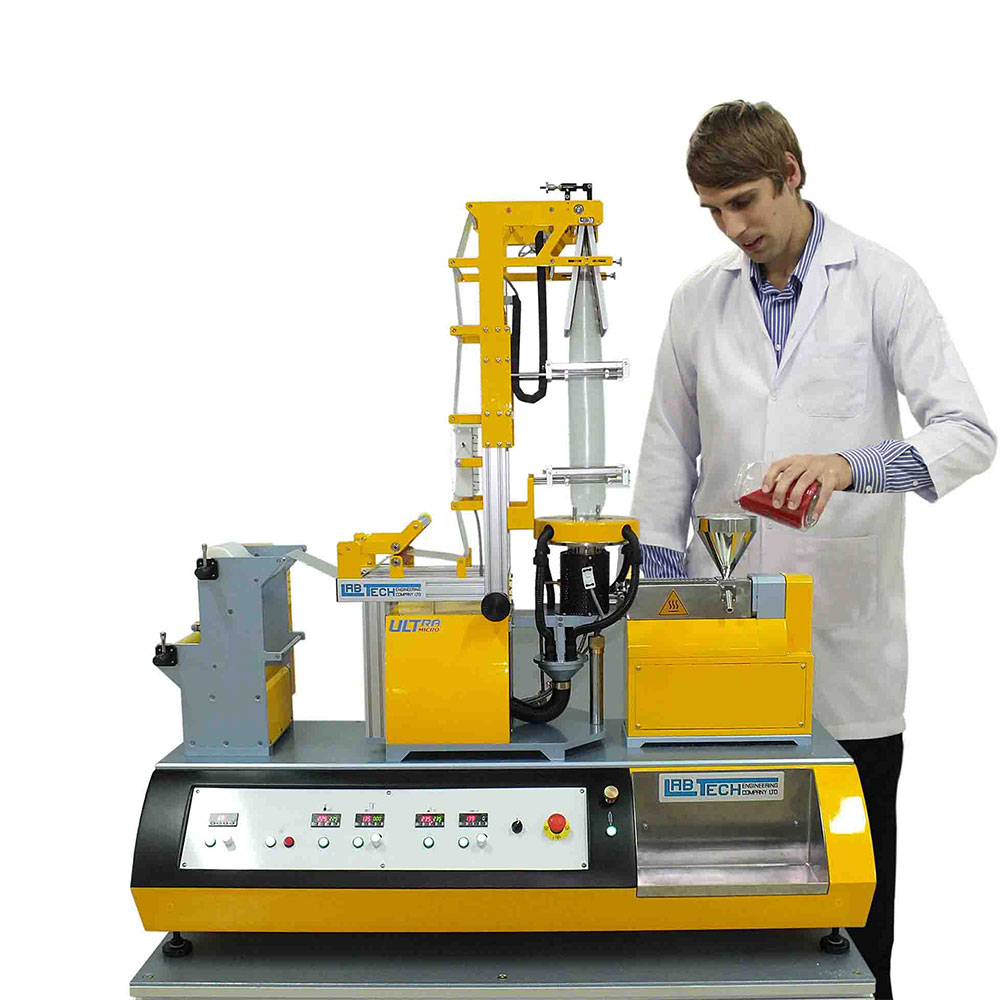

Ultra Micro Blown Film
The line was secretly designed and built by our engineers and technicians during their spare time and was presented as a New Years gift to our company’s manager. A lot of engineering has gone into this design, completely designed and built from scratch and the result is truly amazing. This Ultra Micro film blowing line worked so well that we decided to offer it to our customer worldwide. It was shown for the first time in April 2012 at the NPE exhibition in USA and it drew a huge crowd at all times during show hours. The original model was a fully functional version and it was made as an exact replica of our larger laboratory film blowing line. However it was made to be a functional model for display and not for professional use.
We have now completely rebuilt the line using advanced components to make it a fully professional version with same high quality as our other machines so that it can be used for research and learning institutes for many years to come.
-
Ultra Micro Cast Film and Sheet Line: LUMCR-50
We are pleased to present the second addition to our Ultra Micro machine lines, the truly amazing fully functional cast film and sheet line built with same 8 mm extruder as we have for the Ultra Micro Blown Film line. A lot of engineering has gone into this machine which is completely designed and built from scratch and the result is truly amazing. What was even more amazing is that the line was not built as a model but instead as a professional functional line and with same high quality as our other machines so that it can be used for research and learning institutes for many years to come.
